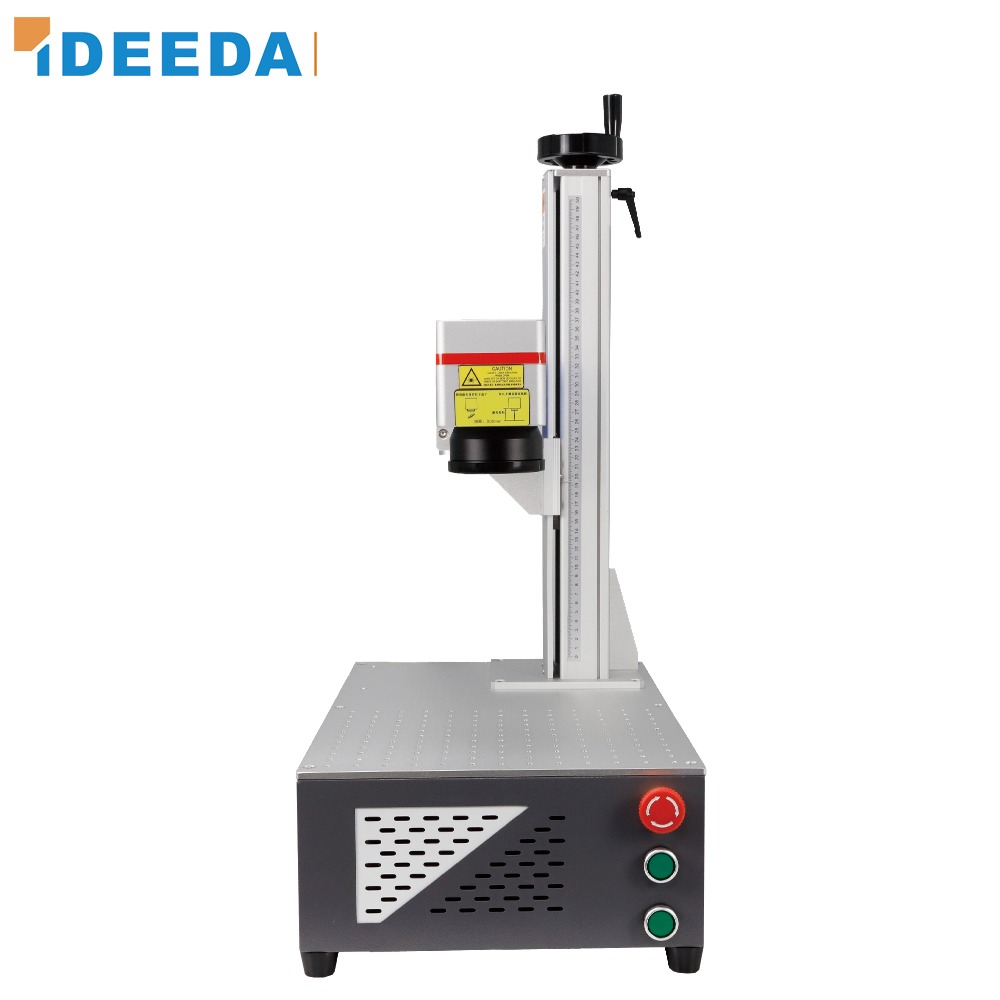

DLM-FD-50 Desktop Fiber Laser Marking Machine

Name: DLM-FD-50 Desktop Fiber Laser Marking Machine
Brand: IDEEDA
SKU: DLM-FD-50

Model: DLM-FD-50

DLM-FD-50 - Professional Desktop Fiber Laser Marking Machine by IDEEDA.

Laser Power

20W / 30W / 50W / 60W

Laser Source

—

Marking Area

—

Marking Speed

—

Cooling

—

Weight

—

Chat on WhatsApp

Download Spec PDF Share

Compare Models

Specification	DLM-FD-50 Desktop Fiber Laser Marking Machine This model	DLM-FD-20 Desktop Fiber Laser Marking Machine	DLM-FD-30 Desktop Fiber Laser Marking Machine	DLM-FD-60 Desktop Fiber Laser Marking Machine
Laser Wavelength	1064nm	1064nm	1064nm	1064nm
Control Board Brand	JCZ	JCZ	JCZ	JCZ
Laser Power	50W	20W	30W	60W
Repetition Frequency	50~100kHz	30~60kHz	40~60kHz	55~100kHz
Pulse Width Range	120~150ns	120~150ns	130~160ns	120~150ns
Power Adjustment Range	10~100%	10~100%	10~100%	10~100%
Marking Speed	≤7000mm/s	≤7000mm/s	≤7000mm/s	≤7000mm/s
Dual Red Light	Manual (Optional Dual Red Light Focusing)	Manual (Optional Dual Red Light Focusing)	Manual (Optional Dual Red Light Focusing)	Manual (Optional Dual Red Light Focusing)
Focal Length Height	F=163mm	F=163mm	F=163mm	F=163mm
Marking Range	110110mm (Optional 150150mm / 175*175mm)	110110mm (Optional 150150mm / 175*175mm)	110110mm (Optional 150150mm / 175*175mm)	110110mm (Optional 150150mm / 175*175mm)
Min Line Width	0.06mm @ F=163mm (Differences In Materials)	0.06mm @ F=163mm (Differences In Materials)	0.06mm @ F=163mm (Differences In Materials)	0.06mm @ F=163mm (Differences In Materials)
Min Character	0.2mm @ F=163mm	0.2mm @ F=163mm	0.2mm @ F=163mm	0.2mm @ F=163mm
Repeatability Accuracy	0.01mm	0.01mm	0.01mm	0.01mm
Software	Ezcad2,Compatible with LightBurn	Ezcad2,Compatible with LightBurn	Ezcad2,Compatible with LightBurn	Ezcad2,Compatible with LightBurn
Support System	Windows	Windows	Windows	Windows
Support File Formats	Jpg \| Jpeg \| Bmp \| Gif \| Png \| Ai \| Plt \| Dxf \| Svg	Jpg \| Jpeg \| Bmp \| Gif \| Png \| Ai \| Plt \| Dxf \| Svg	Jpg \| Jpeg \| Bmp \| Gif \| Png \| Ai \| Plt \| Dxf \| Svg	Jpg \| Jpeg \| Bmp \| Gif \| Png \| Ai \| Plt \| Dxf \| Svg
Software Language	Chinese \| English \| French \| Russian\| German \| Italian \|Korean \| Japanese etc.	Chinese \| English \| French \| Russian\| German \| Italian \|Korean \| Japanese etc.	Chinese \| English \| French \| Russian\| German \| Italian \|Korean \| Japanese etc.	Chinese \| English \| French \| Russian\| German \| Italian \|Korean \| Japanese etc.
Lifting Method	Manual Lifting (Optional Electric Lifting)	Manual Lifting (Optional Electric Lifting)	Manual Lifting (Optional Electric Lifting)	Manual Lifting (Optional Electric Lifting)
Computer	Not Included, Optional To Add	Not Included, Optional To Add	Not Included, Optional To Add	Not Included, Optional To Add
Cooling Method	Air Cooling	Air Cooling	Air Cooling	Air Cooling
Power Supply	110~220V 50Hz~60Hz	110~220V 50Hz~60Hz	110~220V 50Hz~60Hz	110~220V 50Hz~60Hz

Certified & Compliant

CE · ISO 9001 · FDA-compliant manufacturing

2-Year Warranty

Full technical support & global service network

Factory-Direct Pricing

Best quote with free sample test & fast delivery

The DLM-FD-50 is a high-performance Desktop Fiber Laser Marking Machine engineered for industrial precision marking applications.

Powered by a 20W / 30W / 50W / 60W laser source, this machine delivers exceptional marking quality on metals (stainless steel, aluminum, copper, brass), plastics, and more.

Key Features

High-speed galvo scanning system for rapid marking
Industrial-grade laser source with 100,000+ hours lifespan
Intuitive control software with broad format support
Compact design suitable for production line integration
CE / FDA / RoHS certified for global market compliance

Applications

Serial number and barcode marking
Logo and brand engraving
Industrial part identification
Medical device UDI marking
Electronics component labeling

Why Choose IDEEDA

Shenzhen-based laser equipment manufacturer. OEM/ODM services, competitive pricing, lifetime technical support.

MOQ: 1 unit | Lead Time: 7-15 days | Warranty: 2 years

Technical Specifications

Specifications are being compiled. Please contact us for detailed technical data.

Marking Sample Gallery

Stainless Steel

Deep engraving on SS304

Aluminum

Serial number on alloy

Copper Logo

Company logo on copper

Titanium QR

QR code on medical titanium

ABS Plastic

Date code on plastic housing

Gold Ring

Personalized ring engraving

Want to see how it performs on your materials? Request a free sample test.

Frequently Asked Questions

This machine can permanently mark most metals including steel, stainless steel, iron, aluminum, copper, brass, titanium, gold, silver, and hard alloys. It also works on ABS, PVC, PC, nylon, and other hard plastics.

The machine comes with EZCAD software (Windows) included at no extra cost. It is also compatible with LightBurn, a popular third-party laser control software.

Air-cooled models require no external water chiller — just plug into a standard power outlet. Cabinet models have built-in cooling fans.

Yes, you can upgrade the marking area by replacing the F-theta lens. We sell F-theta lenses separately and can guide you through installation.

Supported formats include PLT, DXF, AI, SVG, JPG, GIF, BMP, PNG, and more. Both vector and raster files are supported.
